Latex grammar highlight Plugin for Atom

Editor

Prerequisation

sudo apt install -y texlive texlive-font-utils texlive-pstricks-doc texlive-base texlive-formats-extra texlive-lang-german texlive-metapost texlive-publishers texlive-bibtex-extra texlive-latex-base texlive-metapost-doc texlive-publishers-doc texlive-binaries texlive-latex-base-doc texlive-science texlive-extra-utils texlive-latex-extra texlive-science-doc texlive-fonts-extra texlive-latex-extra-doc texlive-pictures texlive-xetex texlive-fonts-extra-doc texlive-latex-recommended texlive-pictures-doc texlive-fonts-recommended texlive-humanities texlive-lang-english texlive-latex-recommended-doc texlive-fonts-recommended-doc texlive-humanities-doc texlive-luatex texlive-pstricks perl-tk
sudo apt install latexmk

atom

3 latex packages for atom:

• language-latex（latex高亮）
• latex
• pdf-view（可视化显示）

reference: Violet-Guo

© Violet-Guo 2017

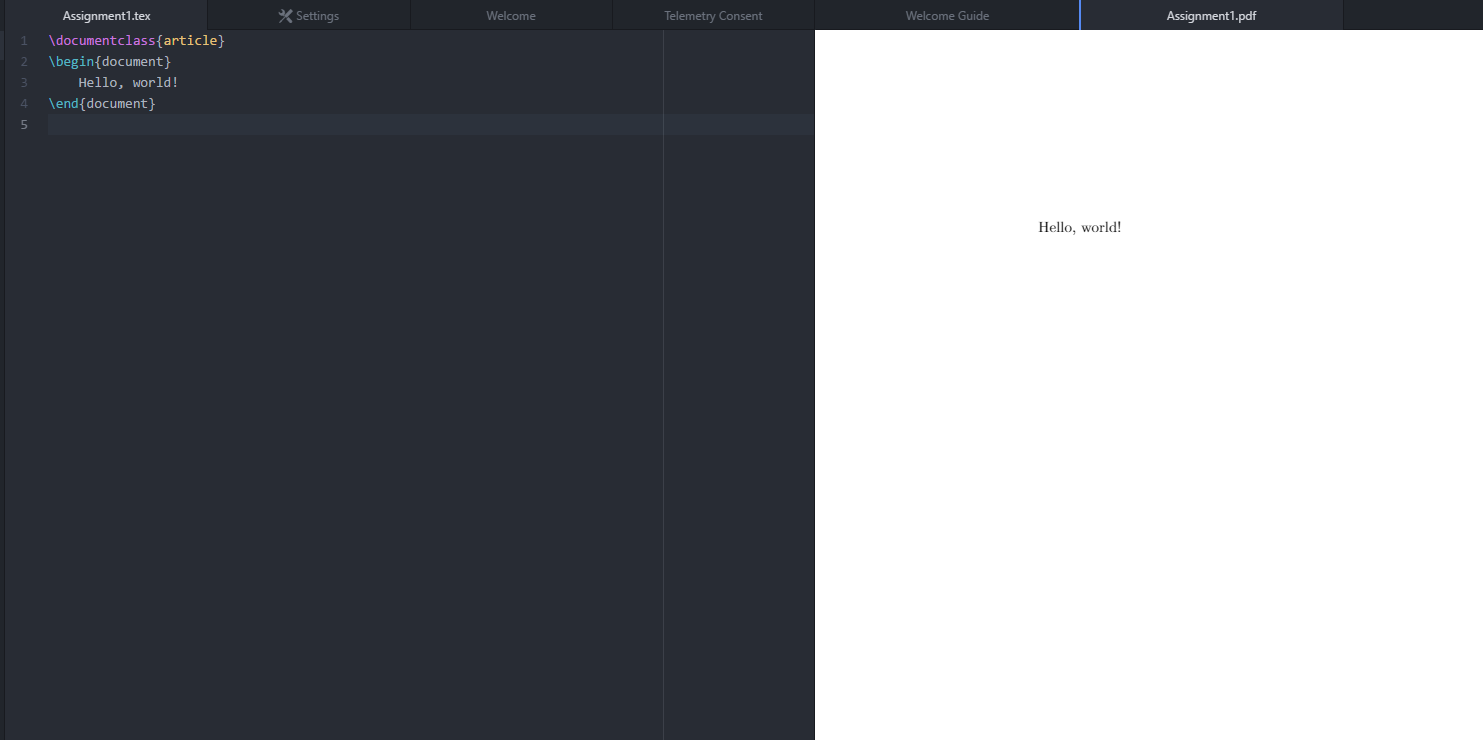

按Ctrl+Alt+B預覽

© Violet-Guo 2017

more editors

https://www.zhihu.com/question/19954023

• Lyx
• TexStudio
• Sublime Text
• Emacs

Online Platform: Overleaf

I found most of my friends are using Overleaf to edit latex online. So, I tired and use it, too. It is good. All codes and methods below are all test under the Overleaf platform.

Main structure of the Latex

here is the structure of the latex projects:

.
├── figures
│   └── example_figure.pdf
├── ldr-article.cls
├── main.bib
├── main.pdf
├── main.tex
├── README.md
└── Rmarkdown.Rmd

This directory is an example from the overleaf (ldr-template).

• The figures is a directory for storing the figures.
• The ldr-article.cls is for storing all configures which like cs for html.
• the main.bib is for storing the citations
• the main.tex is the place for your main contented.

\documentclass{ldr-article}
\addbibresource{main.bib}
\title{Titiel is here }
\author{
Karobben 1\\\\
Karobben 2
}

\begin{document}
    \maketitle
    \begin{abstract}
    There are no abstracts. Lol
    \end{abstract}
    \keywords{latex; write a papre}
\section{Introduction}
This is an exmaple for showing the basic structure of a latex
\section{Result}
\subsection{Result 1}
\subsection{Result 2}
\end{document}

Citation

In latex, there is at least two ways to cite: cite and parencite. The different between two of them are parencite could automatically add parent symbol, “()”, for you.

Contents in main.bib file:

@article{Ctrax,
  title={High-throughput ethomics in large groups of Drosophila},
  author={Branson, Kristin and Robie, Alice A and Bender, John and Perona, Pietro and Dickinson, Michael H},
  journal={Nature methods},
  volume={6},
  number={6},
  pages={451--457},
  year={2009},
  publisher={Nature Publishing Group US New York}
}
@article{CADABRA,
  title={Automated monitoring and analysis of social behavior in Drosophila},
  author={Dankert, Heiko and Wang, Liming and Hoopfer, Eric D and Anderson, David J and Perona, Pietro},
  journal={Nature methods},
  volume={6},
  number={4},
  pages={297--303},
  year={2009},
  publisher={Nature Publishing Group US New York}
}

Latex	Rendered in PDF
Citation test:\\ - Parencite: \parencite{Ctrax} \\ - Parencite multiple: \parencite{Ctrax, CADABRA} \\ - Cite: \cite{Ctrax}\\ - Cite multiple: \cite{Ctrax, CADABRA}\\	Citation test: - Parencite: (Branson et al.) - Parencite multiple: (Branson et al.; Dankert et al.) - Cite: Branson et al. - Cite multiple: Branson et al.; Dankert et al.

Different styles for citation:

Find the line \RequirePackage[style= in the file of ldr-article.cls

Style	Approximate Citation Format
alphabetic	[Bra+09]
authortitle	Branson et al., “High-throughput ethomics in large groups of Drosophila”
authoryear	Branson et al. 2009
authoryear-icomp	Branson et al. 2009
authoryear-comp	Branson et al. 2009
numeric	[1]
numeric-comp	[1]
reading	Branson, Kristin, et al. 2009
verbose	Branson, Kristin, et al. “High-throughput ethomics in large groups of Drosophila.” Nature Methods 6.6 (2009): 451-457
chem-acs	(1)
phys	[1]
nejm	1.
nature	1.
science	1.
ieee	[1]

Other tricks

1. Commenting: % this is a invisible comment
2. Dealing with special characters: In LaTeX, some characters are reserved for special commands. If you need to use these characters as they are, you need to escape them using a backslash (\). The special characters are: # $ % ^ & _ { } ~ \. For example, if you want to write 5%, you need to write it as 5\% in LaTeX.
3. Inserting images: The graphicx package provides commands to work with images. You can use the \includegraphics command to insert an image.

   \usepackage{graphicx}

   \begin{document}
   \includegraphics{filename}
   \end{document}

4. Creating tables: The tabular environment can be used to create tables

   \begin{tabular}{|c|c|}
   \hline
   Header 1 & Header 2 \\
   \hline
   Row 1, Col 1 & Row 1, Col 2 \\
   Row 2, Col 1 & Row 2, Col 2 \\
   \hline
   \end{tabular}

5. Dealing with large documents: For large documents like a thesis or a book, you can use \input{filename} or \include{filename} to add contents from another file. This can help keep your project organized.
6. Math mode: LaTeX is widely used for its superior handling of mathematical equations. You can insert an inline mathematical equation like this: $E=mc^2$, or a standalone one like this:

   \begin{equation}
   E=mc^2
   \end{equation}

7. Hyperlinks: With the hyperref package, you can add hyperlinks to your document.

   \usepackage{hyperref}
   ...
   \href{https://www.example.com}{Link text}

8. Referencing: With LaTeX, you can easily cross-reference figures, tables, sections, etc. For example, when you label a figure using \label{fig:my_label} you can reference it with \ref{fig:my_label} and it will automatically update the figure number.
   Remember, the power of LaTeX comes from the various packages available. When you want to do something specific, there is probably a package that can help you achieve it. Check the documentation of the packages to make full use of their features.
